Public pre-insulated ends(MDD)


【Prev Products】	【Next Products】

Parameters

Conductor cross section：0.5-1.5mm²（American Wire Gauge 22-16）

Maximum current·Imax=10A Brass

ITEMNO	NAMETAB	Thickness of material	DIMENSION

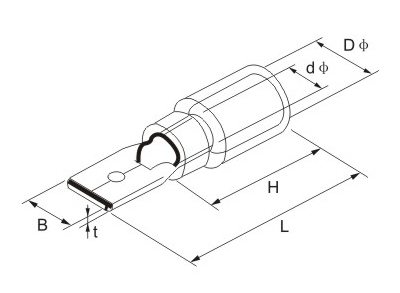

	NAMETAB	Thickness of material	B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
MDD 1.25-110(5)	0.5x2.8	0.5	2.8	1.7	4.3	17.7	10.0
MDD 1.25-110(8)	0.8x2.8	0.8	2.8	1.7	4.3	17.7
MDD 1.25-187(5)	0.5x4.75	0.5	4.75	1.7	4.3	18.5
MDD 1.25-187(8)	0.8x4.75	0.8	4.75	1.7	4.3	18.5
MDD 1.25-250	0.8x6.3	0.4	6.3	1.7	4.3	21.0

Conductor cross section：1.5-2.5mm²（American Wire Gauge 16-14）

Maximum current·Imax=15A Brass

ITEMNO	NAMETAB	Thickness of material	DIMENSION
	NAMETAB	Thickness of material	B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
MDD 2-110(5)	0.5x2.8	0.5	2.8	2.3	4.3	17.7	10.0
MDD 2-110(8)	0.8x2.8	0.8	2.8	2.3	4.3	17.7
MDD 2-187(5)	0.5x4.75	0.5	4.75	2.3	4.3	18.5
MDD 2-187(8)	0.8x4.75	0.8	4.75	2.3	4.3	18.5
MDD 2-250	0.8x6.35	0.4	6.35	2.3	4.3	21.0

Conductor cross section：4-6mm²（American Wire Gauge 12-10）

Maximum current·Imax=24A Brass

ITEMNO	NAMETAB	Thickness of material	DIMENSION
	NAMETAB	Thickness of material	B	dφ	Dφ	L	H
	mm	mm	mm	mm	mm	mm	mm
MDD 5.5-187	0.5x4.75	0.5	4.75	3.4	5.7	23.0	14.0
MDD 5.5-250	0.8x6.3	0.4	6.3	3.4	5.7	25.0	14.0
