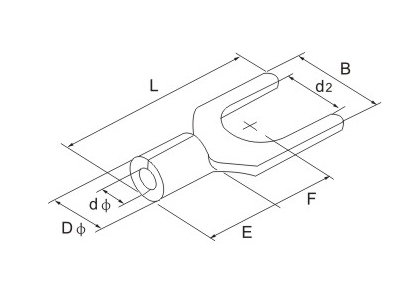

Fork bare ends (SNB)

You are here: Home » What We Do

Conductive cross section0.5~1.5mm² Maximum current=19A Copper0.7mm






ITEM   NO



DIMENSION



American   Bolt

Bolt   opening diameter

B

L

F

E

DΦ

dΦ

d2

mm

mm

mm

mm

mm

mm

SNB1.25-3

#4

3.2mm

5.7

16.0

6.5



























4.8



























3.4



























1.7

SNBS1.25-3.5

#6

3.7mm

5.7

16.0

6.5

SNBL1.25-3.5

#6

3.7mm

6.4

16.0

6.5

SNBS1.25-4

#8

3.2mm

6.4

16.0

6.5

SNBM1.25-4

#8

4.3mm

7.2

16.0

6.5

SNBL1.25-4

#8

4.3mm

8.1

16.0

6.5

SNBS1.25-5

#10

5.3mm

8.1

16.0

6.5

SNBL1.25-5

#10

5.3mm

9.5

16.0

6.5

SNBS1.25-6

1/4

6.5mm

9.5

16.0

6.5

SNBL1.25-6

1/4

6.5mm

12.0

22.0

11.0

SNB   1.25-8

5/16

8.4mm

14.0

23.5

12.5



Conductive cross section1.5~2.5mm² Maximum current=27A Copper0.8mm







ITEM   NO



DIMENSION



American   Bolt

Bolt   opening diameter

B

L

F

E

DΦ

dΦ

d2

mm

mm

mm

mm

mm

mm

SNB2-3

#4

3.2mm

5.7

16.0

6.5



























4.8



























4.1



























2.3

SNBS2-3.5

#6

3.7mm

5.7

16.0

6.5

SNBL2-3.5

#6

3.7mm

6.4

16.0

6.5

SNBS2-4

#8

3.2mm

6.4

16.0

6.5

SNBM2-4

#8

4.3mm

7.2

16.0

6.5

SNBL2-4

#8

4.3mm

8.1

16.0

6.5

SNBS2-5

#10

5.3mm

8.1

16.0

6.5

SNBL2-5

#10

5.3mm

9.5

16.0

6.5

SNBS2-6

1/4

6.5mm

9.5

16.0

6.5

SNBL2-6

1/4

6.5mm

12.0

22.0

11.0

SNB   2-8

5/16

8.4mm

14.0

23.5

12.5


Conductive cross section
2.5~4mm² Maximum current=37A Copper1.0mm







ITEM   NO



DIMENSION



American   Bolt

Bolt   opening diameter

B

L

F

E

DΦ

dΦ

d2

mm

mm

mm

mm

mm

mm

SNB3.5-3

#4

3.2mm

5.7

18.3

7.0











6.0











5.0











3.0

SNB3.5-4

#8

4.3mm

8.0

18.3

7.0

SNB3.5-5

#10

5.3mm

8.0

18.3

7.0

SNB3.5-6

1/4

6.5mm

12.0

21.5

12.1



Conductive cross section4~6mm² Maximum current=48A Copper1.0mm






ITEM   NO



DIMENSION



American   Bolt

Bolt   opening diameter

B

L

F

E

DΦ

dΦ

d2

mm

mm

mm

mm

mm

mm

SNB5.5-3.5

#6

3.7mm

8.3

19.5

7.5

















6.8

















5.6

















3.4

SNBS5.5-4

#8

4.3mm

8.3

19.5

7.5

SNBL5.5-4

#8

4.3mm

9.0

19.5

7.5

SNB5.5-5

#10

5.3mm

9.0

19.5

7.5

SNBS5.5-6

1/4

6.5mm

9.0

19.5

7.5

SNBL5.5-6

1/4

6.5mm

12.0

25.5

12.0

SNB5.5-8

5/16

8.4mm

14.0

24.5

11.5
