Fork pre-insulated ends (UTSC)

You are here: Home » What We Do

Fork pre-insulated ends (UTSC)


E-mail Us PDF Download
【Prev Products】 【Next Products】

Conductor cross section：0.5-1.5mm²（American Wire Gauge 22-16）

Maximum current·Imax=19A           Copper0.7mm





ITEMNO

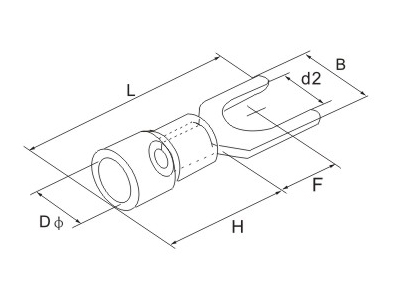

DIMENSION





color

American   system  bolt number

Bolt hole diameter

B

L

F

H

Dφ

D2φ

mm

mm

mm

mm

mm

SV1.25-3

#4

3.2mm

5.7

21.2

6.5











10.0











4.3











red

SVS   1.25-3.5

#6

3.7mm

5.7

21.2

6.5

SVL   1.25-3.5

#6

3.7mm

6.4

21.2

6.5

SVS   1.25-4

#8

4.3mm

6.4

21.2

6.5

SVM   1.25-4

#8

4.3mm

7.2

21.2

6.5

SVL1.25-4

#8

4.3mm

8.1

21.2

6.5

SVS   1.25-5

#10

5.3mm

8.1

21.2

6.5

SVL   1.25-5

#10

5.3mm

9.5

21.2

6.5

SVS   1.25-6

1/4

6.5mm

9.5

21.2

6.5

SVL   1.25-6

1/4

6.5mm

12.0

27.2

11.0

SV   1.25-8

5/16

8.5mm

14.0

29.0

12.5


Conductor cross section：1.5-2.5mm²（American Wire Gauge 16-14）

Maximum current·Imax=27A           Copper0.8mm





ITEMNO

DIMENSION





color

American   system  bolt number

Bolt hole diameter

B

L

F

H

Dφ

D2φ

mm

mm

mm

mm

mm

SV   2-3

#4

3.2mm

5.7

21.2

6.5











10.0











4.9











blue

SVS   2-3.5

#6

3.7mm

5.7

21.2

6.5

SVL   2-3.5

#6

3.7mm

6.4

21.2

6.5

SVS   2-4

#8

4.3mm

6.4

21.2

6.5

SVM   2-4

#8

4.3mm

7.2

21.2

6.5

SVL   2-4

#8

4.3mm

8.1

21.2

6.5

SVS   2-5

#10

5.3mm

8.1

21.2

6.5

SVL   2-5

#10

5.3mm

9.5

21.2

6.5

SVS   2-6

1/4

6.5mm

9.5

21.2

6.5

SVL   2-6

1/4

6.5mm

12.0

27.2

11.0

SV   2-8

5/16

8.5mm

14.0

29.0

12.5



Conductor cross section：2.5-4mm²（American Wire Gauge 14-12）

Maximum current·Imax=37A           Copper1.0mm






ITEMNO

DIMENSION





color

American   system  bolt number

Bolt hole diameter

B

L

F

H

Dφ

D2φ

mm

mm

mm

mm

mm

SV   3.5-3

#4

3.2mm

5.7

24.8

7.0





12.5





6.2





black

SV   3.5-4

#8

4.3mm

8.0

24.8

7.0

SV   3.5-5

#10

5.3mm

8.0

24.8

7.0

SV   3.5-6

1/4

6.5mm

12.0

28.0

12.1



Conductor cross section：2.5-4mm²（American Wire Gauge 14-12）

Maximum current·Imax=37A           Copper1.0mm






ITEMNO

DIMENSION





color

American   system  bolt number

Bolt hole diameter

B

L

F

H

Dφ

D2φ

mm

mm

mm

mm

mm

SV   5.5-3.5

#6

3.7mm

8.3

25.2

7.5







12.5







6.7







yellow

SVS   5.5-4

#8

4.3mm

8.3

25.2

7.5

SVL   5.5-4

#8

4.3mm

9.0

25.2

7.5

SV   5.5-5

#10

5.3mm

9.0

25.2

7.5

SVS   5.5-6

1/4

6.5mm

9.0

25.2

7.5

SVL   5.5-6

1/4

6.5mm

12.0

31.2

12.0

SV   5.5-8

1/4

8.4mm

14.0

30.0

11.5
