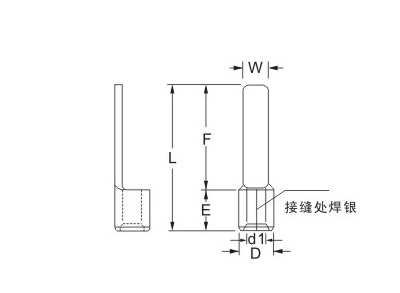

ITEM NO | DIMENSION | Wire cross section | ||||||
W | F | L | E | D | D1 | AGW | mm² | |
mm | mm | mm | mm | mm | mm | |||
DBN1.25-10 | 2.3 | 10.0 | 14.8 |
4.8 |
3.4 |
1.7 |
22-16 |
0.5-1.5 |
DBN1.25-11 | 3.0 | 11.0 | 15.8 | |||||
DBN1.25-14 | 3.0 | 14.0 | 18.8 | |||||
DBN1.25-18 | 2.3 | 18.0 | 22.8 | |||||
DBN2-9 | 2.8 | 9.0 | 13.8 |
4.8 |
4.1 |
2.3 |
16-14 |
1.5-2.5 |
DBNS2-14 | 2.4 | 14.0 | 18.8 | |||||
DBNL2-14 | 3.0 | 14.0 | 18.8 | |||||
DBN2-18 | 2.3 | 18.0 | 22.8 | |||||
DBN5.5-10 | 2.8 | 10.0 | 16.0 |
6.0 |
5.6 |
3.4 |
12-10 |
4-6 |
DBN5.5-14 | 4.5 | 14.0 | 20.0 | |||||
DBN5.5-18 | 4.5 | 18.0 | 24.0 | |||||
DBN8-14 | 6.0 | 14.0 | 22.5 | 8.5 | 7.2 | 4.5 | 8 | 6-10 |
DBN14-16 | 6.0 | 16.0 | 27 | 11 | 9.5 | 6.3 | 6 | 10-16 |
DBN22-17 | 7.0 | 17.0 | 29 | 29 | 11.5 | 7.7 | 4 | 16-25 |
